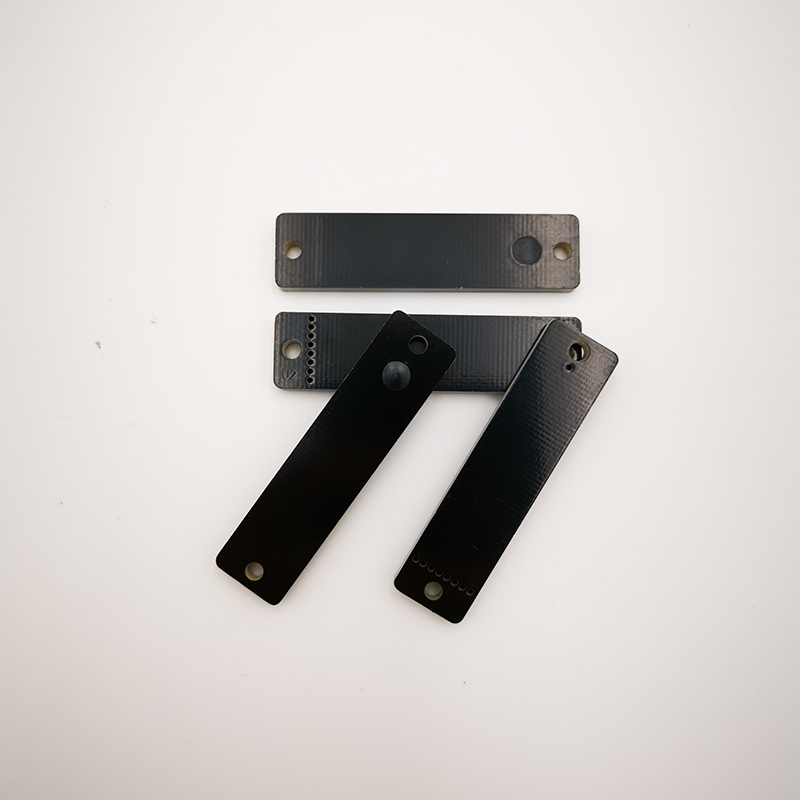

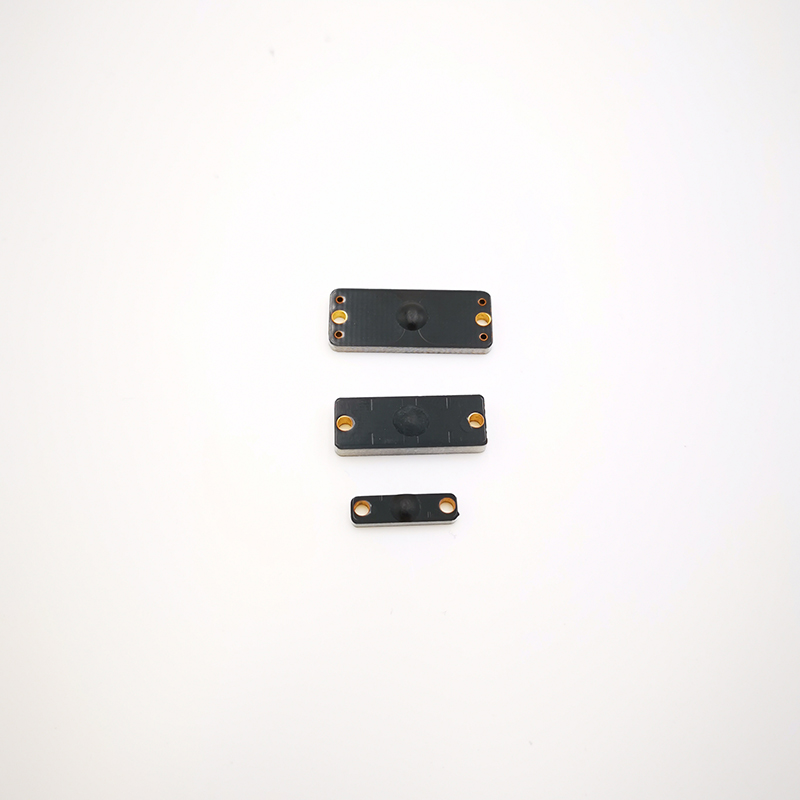

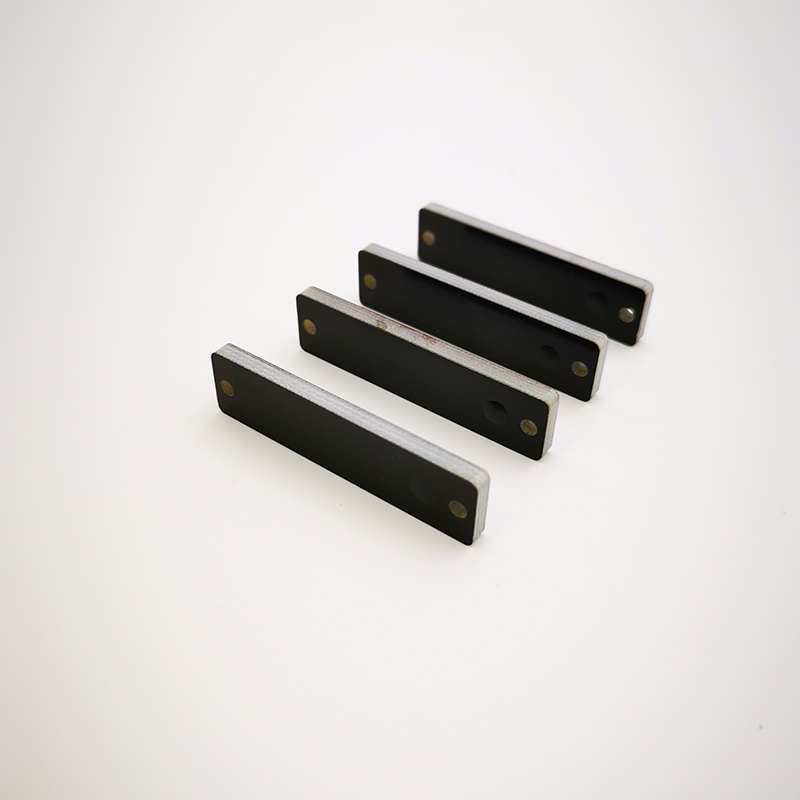

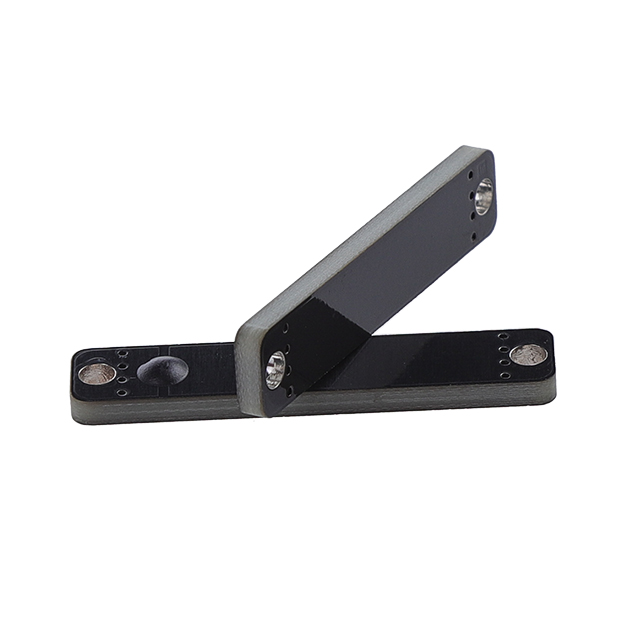

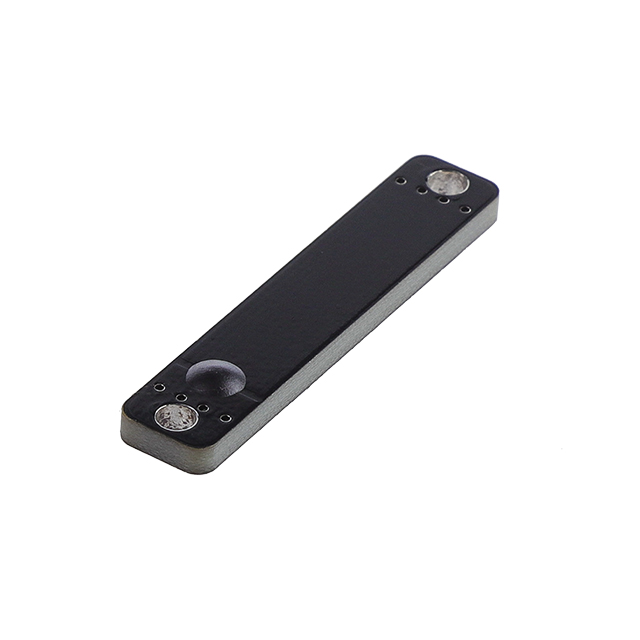

RFID ANTI METAL TAG
A classic UHF Tag used on metal surfaces.
It does a stable and reliable UHF on metal tag, which is widely used in indoor asset management.
ADVANTAGES:
Be of good RF performance, work stably on metal surface.
100% memory writing tested.
Both material and design have been tested for reliability.
100% function tested by Voyantic Tagformance.
MAIN FEATURES:

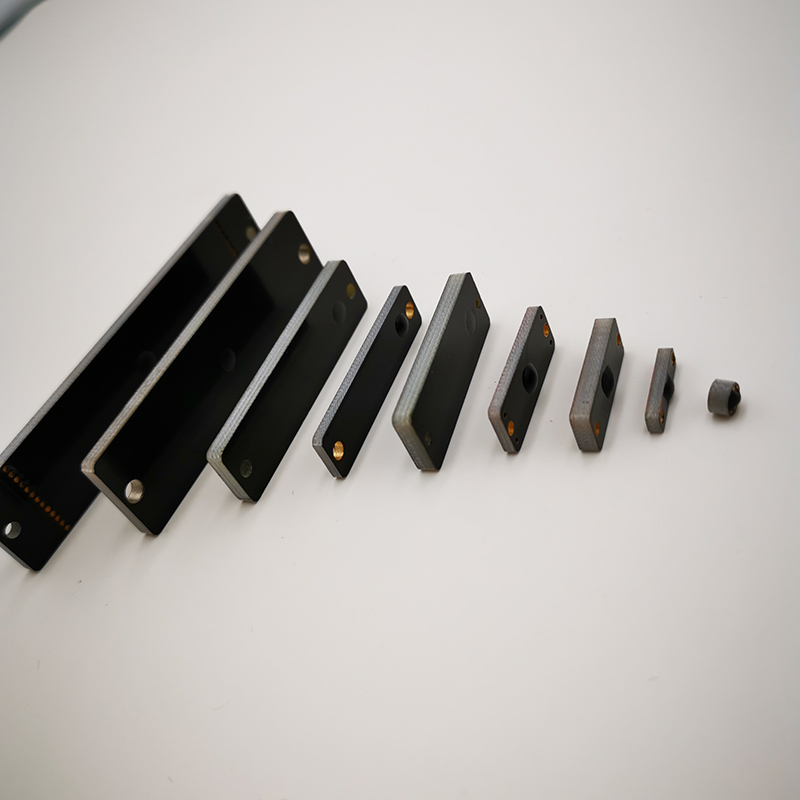

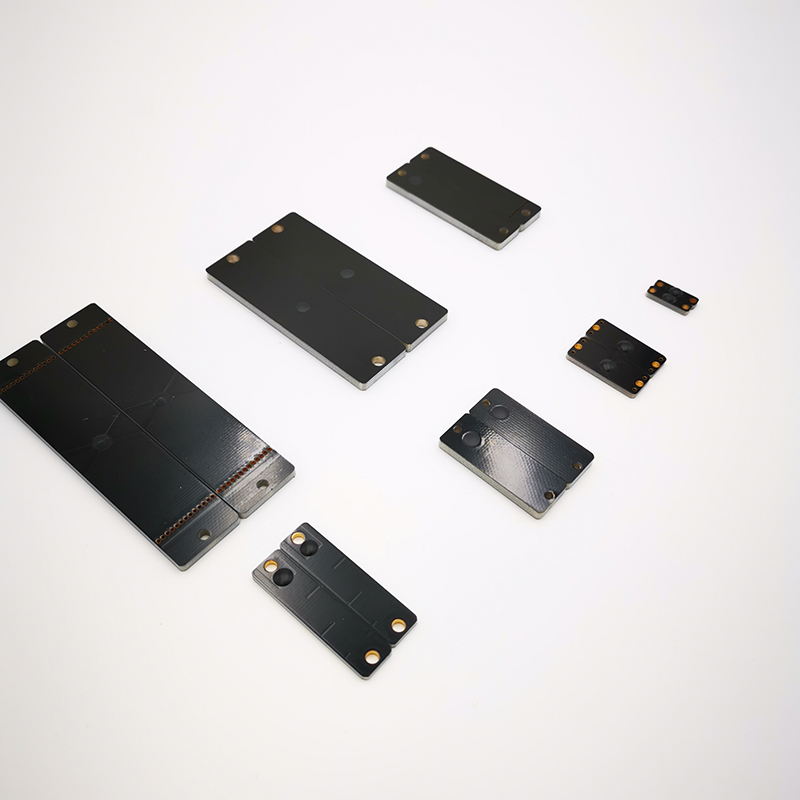

Can customize size for customers.
Flexible and convenient installation.
Painted ones can be used in outdoor.
Logo can be printed on the surface of painted tag.
APPLICATIONS:
Tool and storage management.
IT equipment management.
Metal containers management.
Metal equipment management.
Personnel patrol management.
Fixed asset management.
CHARACTERISTICS：
Compliance | EPC Class1 Gen2; ISO18000-6C |
Frequency | 902-928MHz , 865~868MHz (Can customize frequency) |
Chip | NXP UCODE 8 |
Memory | EPC 128bits |
Read/write | Yes |
Data Storage | 50 years |
Warranty | One year |
Material | FR4 |
Dimension | 50mm L x 10mm W x 3mm H |
Storage Temperature | -40℃~ +110℃ |
Operating Temperature | -25℃~ +70 ℃ |
Storage humidity | 5%～95% |
Delivery format | Single |
Installation Method | Screw, rivet, glue, or 3M300LSE tape (standard) |
Weight | ~ 10g |
Package | Bubble bag and carton |
Color | Black |
Power Supply | Passive |
Drop Test | 1 meters high, 200 drop test passed |
Alcohol test | 95% alcohol test passed |
Gasoline test | Passed |
High & low temperature shock test | -40℃ ~ +70℃, 7 cycles, total 48 hours |
Temperature cycle test | -40℃～+70℃, 7 times cycle time testing, 48 hours total |
RoHS | Compatible |
Read distance on metal surface | Up to 3 meters (EIRP=4W Alien9900 fixed reader) Up to 1.8 meters ( With Alien9011 handheld reader) |
RF performance consistency test | 100% tested by Voyantic Tagformace |
Options | Surface laser, surface LOGO screen printing, pre- encoding, surface pattern processing, surface painting, surface printing. |
