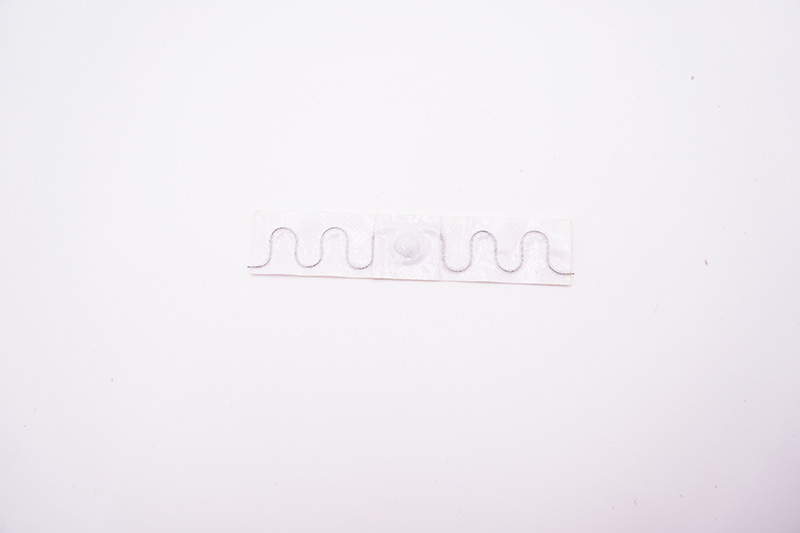

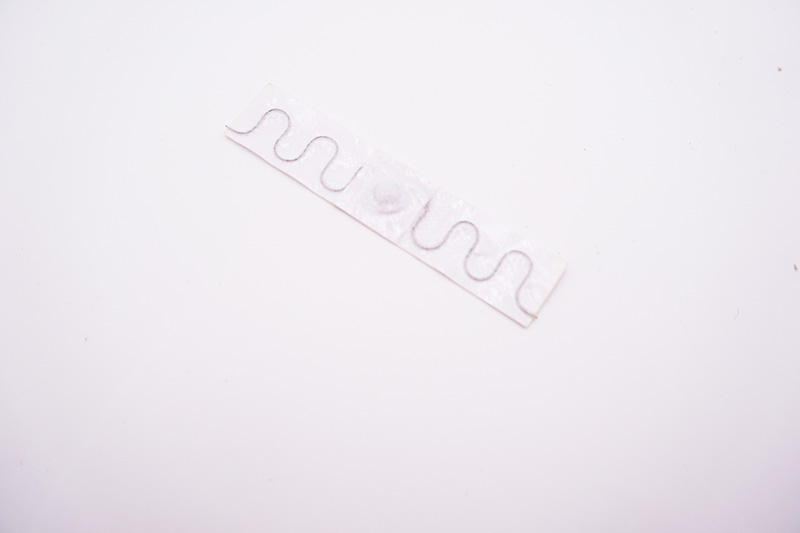

LAUNDRY TAG(MRI)
UHF Textile Laundry Tag, with more than 200 industrial washing cycle times, stable and reliable RF performace
Assembly method: heat sealing or sewing
ADVANTAGES:
More than 200 wash cycles.
Both material and design have been tested for reliability.
100% function tested.
MAIN FEATURES:
Can customize size for customers.
High temperature resistant material.
Can be lasered with barcode.
Resistant to waterproof.
APPLICATIONS:
Industrial washing.
Management of uniforms.
Medical apparel management.
Military clothing management.
Personnel patrol management.
CHARACTERISTICS：
Compliance | EPC Class1 Gen2; ISO18000-6C |
Frequency | 902-928MHz , 865~868MHz (Can customize frequency) |
Chip | NXP Ucode7M, Ucode8, Ucode9 Impinj R6P, M730 |
Memory | R6P and Ucode7M: EPC 96bits,User 32 bits M730 and Ucode8: EPC 128 bits, User 0 bits Ucode9: EPC 96bits,User 0 bits |
Read/write | Yes (EPC) |
Data Storage | 20 years |
Lifetime | 200 wash cycles or 2 years from shipping date (whichever comes first) |
Material | Textile |
Dimension(mm) | 70( L) x 15( W) x 1.5( H), 75( L) x 12( W) x 1.5( H) 70( L) x 10( W) x 1.5( H), 75( L) x 15( W) x 1.5( H) 58( L) x 15( W) x 1.5( H), 40( L) x 15( W) x 1.5( H) 35( L) x 20( W) x 1.5( H), 35( L) x 15( W) x 1.5( H) |
Storage Temperature | -40℃~ +85 ℃ |
Operating Temperature | 1) Washing: 90℃(194οF), 15 minutes, 200 cysle 2) Pre-drying in Tumbler: 180℃(320οF), 30minutes 3) Ironer: 180℃(356 ο F), 10 seconds, 200 cycles 4) Sterilization Process: 135℃(275οF), 20 minutes |
Mechanical Resistance | Up to 60 bars |
Delivery format | Single |
Installation Method | 1) Sewing or put into pouch/hem. 2) Heat sealing under 215℃@12-15 seconds with 0.6 MPa~0.8 MPa. |
Weight | 0.6 ~ 0.8g |
Package | Antistatic bag and carton |
Color | White |
Power Supply | Passive |
Chemicals | Normal common chemicals in the washing processes |
RoHS | Compatible |
Read distance | Up to 5.5 meters (ERP=2W) Upto 2 meters( With ATIDAT880handheldreader) |
Polarization | Liner |
* During sewing installation, the stitching should not damage the metal wire and chip module.
* Different reading performance with different reading facilities.
* Hot installation, when the temperature is lower than 210℃ or the pressure is less than 0.6 Mpa, there will be a hidden trouble of bad hot stamping effect.
