ADVANTAGES:
· Suitable for various fashion items including clothing, shoes, bags, and jewelry
· Compliant with international protocols for stable and reliable performance
· Long shelf life (2 years from manufacture date) and good environmental adaptability
MAIN FEATURES:
· Integrated Circuit (IC): Impinj M730
· Air interface protocol: EPC Class 1 Gen 2, ISO 18000-63
· Operation frequency: 860-960 MHz
· Memory: 128 bit EPC
· Operating temperature (electronics parts): -40 °C/+85 °C (-40 °F/185 °F)
· Transponder face material: White PET 50
· Suitable for fashion item management scenarios
APPLICATIONS:

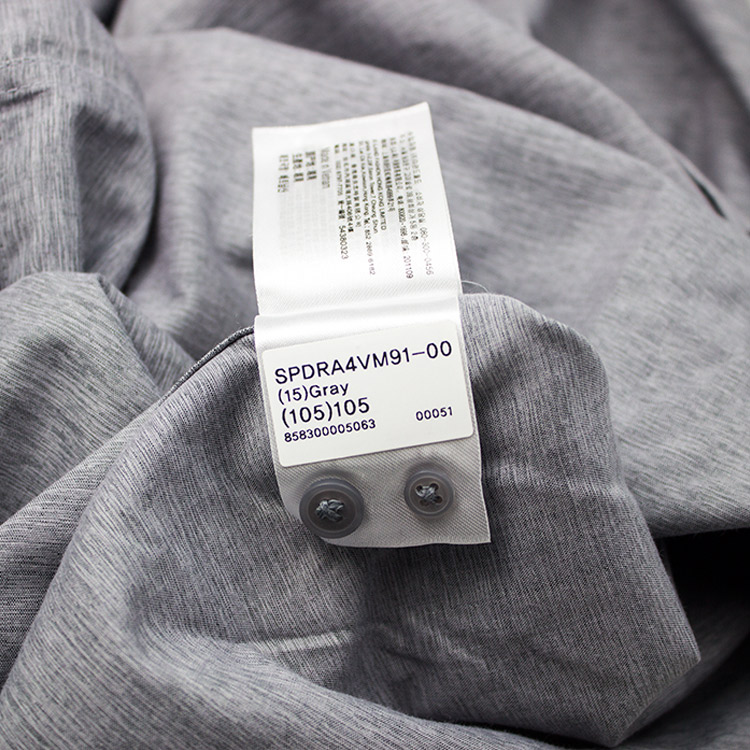

· Clothing management
· Shoes tracking
· Bags asset management
· Jewelry inventory control
· Other fashion items management
CHARACTERISTICS：
Item | Details |
Compliance | EPC Class 1 Gen 2; ISO 18000-63 |
Frequency | 860-960 MHz |
Chip | Impinj M730 |
Memory | 128 bit EPC |
Read/write | Yes (EPC, inferred) |
Data Storage | For specific inquiries, please contact |
Lifetime | Shelf life: 2 years from the date of manufacture |
Material | Transponder face material: White PET 50; Antenna carrier: clear PET; Antenna: Aluminum |
Dimension(mm) | For specific inquiries, please contact |
Storage Temperature | +20 °C, 50 % RH (68 °F, 50% RH) (storage condition for shelf life) |
Operating Temperature | Electronics parts: -40 °C/+85 °C (-40 °F/185 °F); Usage temperature: -20 °C-80 °C (-4 °F-176 °F) |
Mechanical Resistance | Bending diameter (D) >50 mm, tension less than 10 N; Peel: min. 10 N/25 mm (FTM 1) |
Delivery format | Single row reel form, 5000 pcs/reel |
Installation Method | Labelling temperature: min. +0 °C (32 °F) |
Weight | For specific inquiries, please contact |
Package | Paper core inner diameter 76 mm (3 in), full package delivery only |
Color | White (transponder face) |
Power Supply | Passive (inferred for UHF tags) |
Chemicals | For specific inquiries, please contact |
RoHS | For specific inquiries, please contact (refer to similar tags, usually compatible) |
Read distance | For specific inquiries, please contact |
Polarization | For specific inquiries, please contact |
ESD voltage immunity | ± 2 kV peak HBM |
Final inspection | 100% inspection, known faulty ones marked |
Minimum delivery yield | 99% min. |
Note: For unspecified parameters, refer to industry standards for similar UHF tags and Impinj M730 chip specifications.
